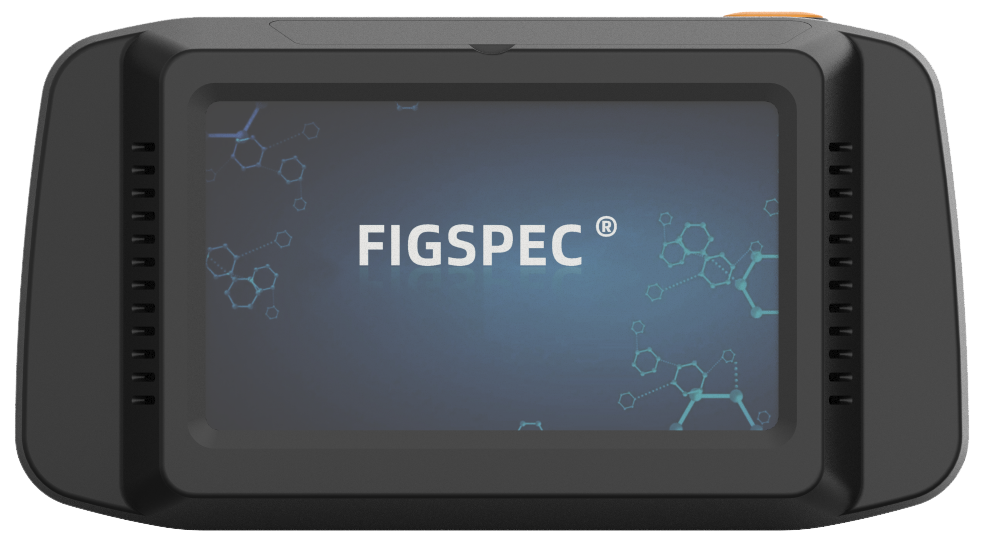

FS IQ Portable hyperspectral camera
FSIQ Family portable hyperspectral camera is an internal sweep hyperspectral camera with a wavelength range Circumference 400-1700nm,
spectral resolution (FWHM) can reach 2.5nm，the spatial resolution is up to 1920*1920, and the number of spectral channels is up to 1200；
Display and operation through 5-inch touch screen, resolution 1280*720.
Model number : FS-IQ-VIS
Spectroscopic method : Transmission grating spectroscopy
Image resolution : 1920*1920
Dynamic range : 12 bits
Imaging speed : 5s
Spectral channel number : 500
Spectral range : 400-700nm
Optical harmonic resolution : 2.5nm
Slit width : 25um
Transmission efficiency : ≥60%
Stray light level : ≤0.5%
Pixel size : 5.86um*5.86um
Detector type : CMOS
Standard lens focal length : 25mm
Minimum working distance : 100mm
Field Angle :25°
Minimum exposure time : 21us
Maximum exposure time : 10s
Signal-to-noise ratio : 600/1
Data interface : USB3.0
Camera lens interface : C
attachment : USB3.0 transmission line
Auxiliary imaging function : The auxiliary view cameramonitors the shooting area
